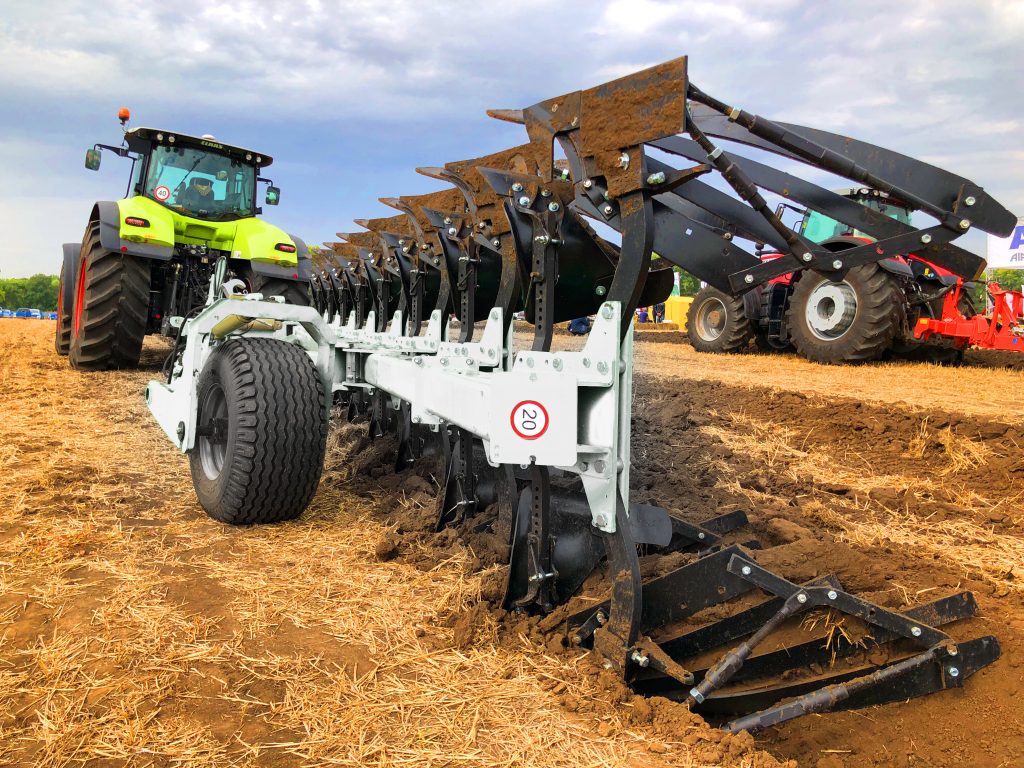

HF Agro swing ploughs for maximum ploughing efficiency in your field.

Soil resistivity up to 0.1 MPa (1kgf/cm2), hardness up to 4.0 MPa (40 kgf/cm2)

Swing ploughs HF Agro are designed for ploughing for grain and industrial crops to a depth of 18 to 35 cm, on soils not clogged with stones, flagstone and other obstacles.





EXCELLENT AND UNIVERSAL PARAMETERS

Tractor power     from 80 to 33 HP.

Coverage     from 0.84 to 4 meters

Working depth    from 18 to 35 cm



PERFECT QUALITY OF HANDLING

  • HF Agro swing ploughs have a high (800 mm) tine and can be equipped with a solid or strip body earthboards.
  • The earthboards have a strip structure, which allows you to loosen the soil intensively and without gaps in conditions of high humidity.
  • The tools are equipped with screw adjusters that allow you to adjust the width and angle of the earthboard in the range from 330 to 500 mm.



CONSTRUCTION ADVANTAGES OF HF Agro PLOUGHS

PRODUCTIVITY AND MANOEVRABILITY
Thanks to the verified design, competent arrangement of a depth wheel (lateral placement), telescopic hydraulic cylinders, a quick turn is provided on a narrow headland, which significantly saves time.

VERSATILITY

The ability to easily change the width of the tool. Simple and easy adjustment, with little or no tools.

EASE OF TRANSPORTATION

Possibility to transport the plough at high speed without putting a load on the tractor hitch.

STRENGTH AND WEAR RESISTANCE.

Maximum frame strength is a guarantee of long-term service, and high wear resistance of tools made of high-quality steel ensures cost savings and operation durability.



EFFECTIVE AND COST-EFFICIENT TOOLS

RELIABLE DESIGN
The earthboards and strips of earthboards are completely attached to the boot of the plough body and are not part of the supporting structure. They provide exclusively the turnover of soil.

EXTENDED SERVICE LIFE
HF Agro plough bodies have an extended service life. They are suitable for tough, sticky soils and require less tractive effort.

MAXIMUM ECONOMY
The earthboards and strips of earthboards can be used until almost completely worn out, as this does not compromise the strength of the plough body in any way.

HEAVY DUTY
On strip earthboards, the distance between the strips and the rear strip attachment has been significantly increased. The attachments are located behind the strips, allowing blockage-free ploughing on heavy soils.



CLEVER AND ROBUST DESIGN

HF Agro swing ploughs consist of a frame with a body turning mechanism (right and left, each body is made with a strip earthboard), a rear support wheels mechanism and a drawbar with a tower.

The frame consists of square beams that are pivotally attached to each other. On both sides, the main beam of the frame is pivotally attached with a rotary beam to the supporting beam.  The main beam is also equipped with a diagonal limit stop connecting the main beam and the rear rotary beam.

On the side that adjoins the tractor, the drawbar is provided with a fastening unit (tower), and on the opposite side, with a mechanism with two depth wheels.

High standards of production and quality of materials ensure reliable, trouble-free and long-term operation of HF Agro ploughs throughout the entire service life.

SPECIFICATIONS

  HF-1114 m HF-1114 m HF-1114 m HF-1114 m HF-1114 m HF-1114 m HF-1114 m HF-1114 m
Number of bodies, pcs 3 3+1 4 4+1 5 5+1 7 7+1
Working width, m 0,84-1,60 1,12-1,60 1,32-2,00 1,65-2,50 1,65-2,50 1,98-3,00 2,31-3,50 2,64-4,00
Transport width, m 1,80 1,80 1,75 1,75 1,72 1,72 1,72 1,72
Ploughing depth, cm 18-30 18-30 18-35 18-35 18-35 18-35 18-35 18-35
Tine height, mm  700 700 800 800 800 800 800 800
Distance between tines, mm  860 860 900 900 1000 1000 1000 1000
Body coverage, cm 28 / 32 / 36 / 40 28 / 32 / 36 / 40 33 / 38 / 44 / 50 33 / 38 / 44 / 50 33 / 38 / 44 / 50 33 / 38 / 44 / 50 33 / 38 / 44 / 50 33 / 38 / 44 / 50
Recommended working speed, km/h 5-9 5-9 8-10 8-10 8-10 8-10 8-10 8-10
Maximum travel speed, km/h 15 15 15 15 20 20 20 20
Weight, kg  740 960 1590 1850 2500 2750 3100 3450
Required power, HP 82 120 180 230 230 270 300 330
Plough with ON-LAND system (on field)              + +
