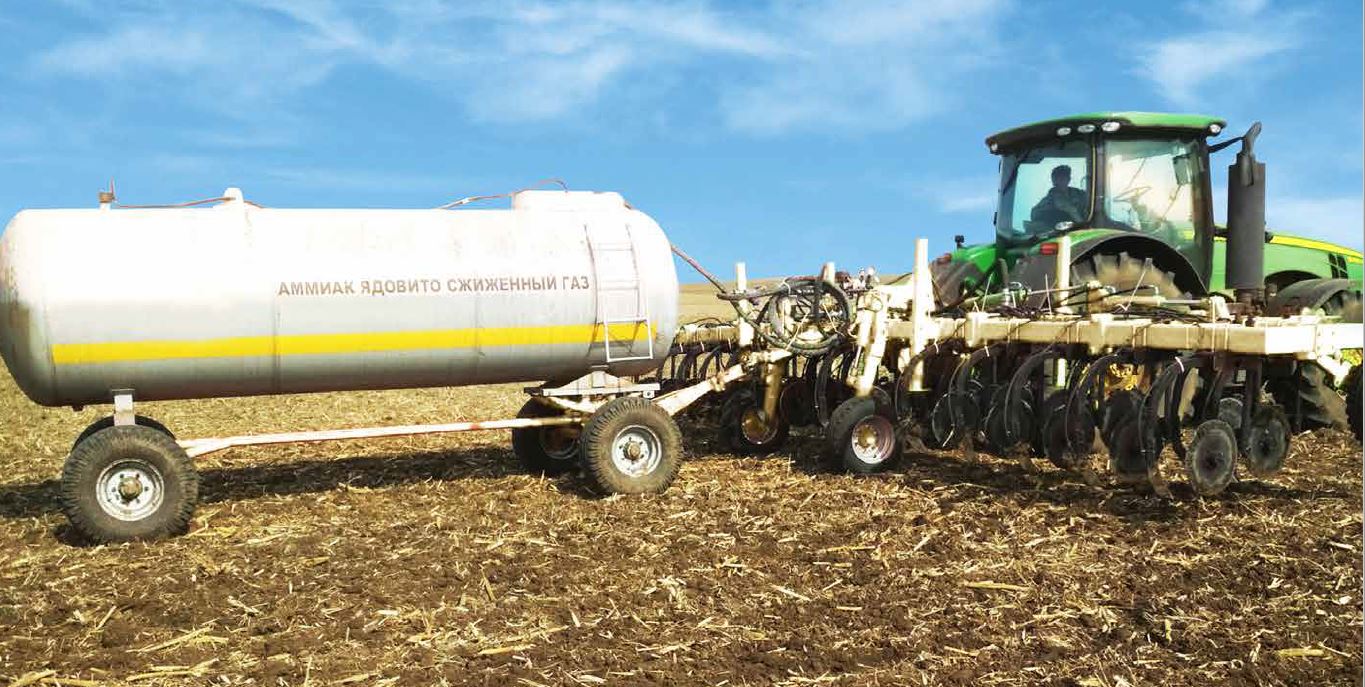

The HF Agro cultivator-fertilizer for the introduction of anhydrous ammonia

The unit is designed for the effective introduction of anhydrous ammonia for various types of soil cultivation: ploughing, disc and minimal tillage, no-till and strip-till.



ADVANTAGES OF THE HF AGRO CULTIVATOR-FEEDER for the introduction of anhydrous ammonia

HIGH ACCURACY AND CONVENIENCE

The unit is equipped with a Raven ammonia distribution and control system, and the ammonia application rate is set by changing the operating speed and operating pressure in the system using a control panel installed in the tractor cab along with high-precision GPS navigation.

HIGH-QUALITY EMBEDDING WITHOUT LOSS

The use of original tools with row-closing elements (harvesters) ensures uniform, high-quality embedding of the substance at a given depth, without “hovering” and loss of ammonia





Possibilities of varying the row spacing: 35 cm, 50 cm, 70 cm.



SPECIFICATIONS

  HF-53115/10 HF-53121/10 HF-53129/10
Operating width, m 10,2
Number of working sections 15 21 29
Row spacing, cm 70 50 35
Required tractor power, HP 220 250 300
Volume of the container for applying liquid fertilizers, L  5000
Cultivation depth, cm от 8 до 15
Track, no more, m 2,8
Working speed, km/h 8-12
Application rate of liquid fertilizers, L/ha от 50 до 250 / от 100 до 300
Slotted disk diameter, mm 480
Weight, not less, kg 7480 8152 9048
Overall dimensions, L * W * H, in transport position, mm 4000*2500*2700
